FLEXITANK

The most economical way for non-hazardous liquid products transportation. We can produce different types of Flexitank to help customers to optimise their transportation cost and safe delivery to the end destination.

Flexitank

A Solution for Non-Hazardous Liquid Transportation

Applications in Various Industries

Food Products

Industrial Products

Natural latex, synthetic latex, base oil
Slack wax, lubricating oil, transformer oil
Glycerol, coconut oil, synthetic resin
Cleaners, surfactants, polyalcohols
Silicate, glycol, PG, fertilizers, disinfectants, etc.

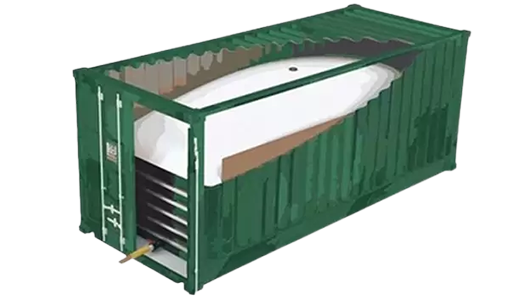

Flexitank (Flexibag) is designed for transporting non-hazardous liquids and can be placed inside a 20-foot shipping container. It is made from PP and multiple layers of PE (LDPE, LLDPE, M-LLDPE). The standard capacity ranges from 18,000 to 24,000 litres, with custom size available. For the 24,000 litre size, sharp objects cannot be loaded and the approximate dimensions are L: 7.35 meters x W: 3.9 meters.

Leak Testing of Flexitank with Pressurized Air

Steam Heating Pad

A steam-based heating pad for Flexitank that helps melt and improve the flow of solidified or highly viscous liquids in cold temperatures before discharging the liquid from the tank.

Transportation Service

Service staff: more than 30 persons

Pick-up * 10 Sets

4 wheels truck * 3 sets

10 wheels truck * 3 sets

Our services

Our services include installation and are as follows:

Sales consulting
High-quality product manufacturing
Clear transportation plan
Insurance coverage up to 5,000,000.00 USD
Technical support

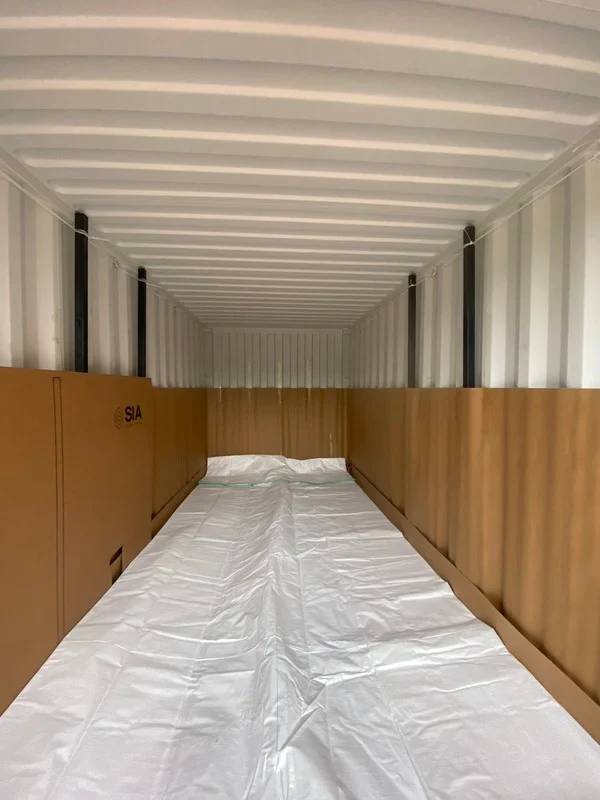

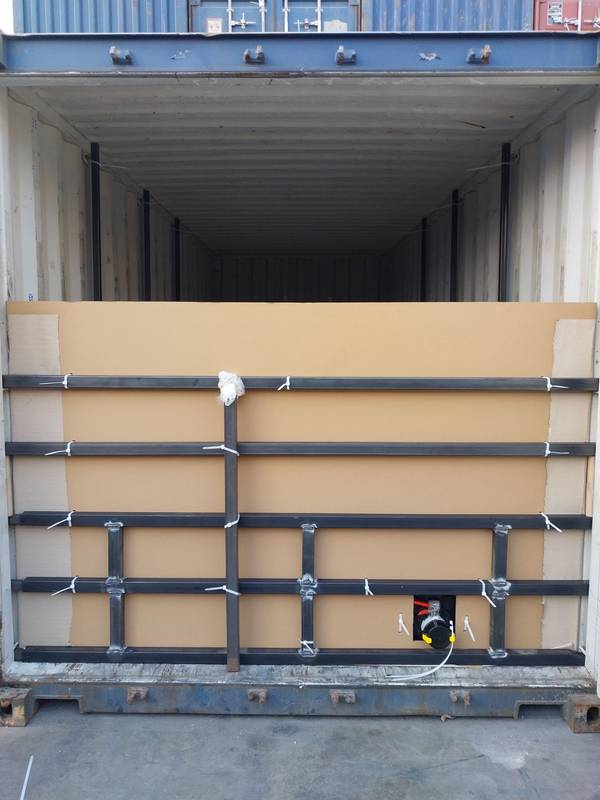

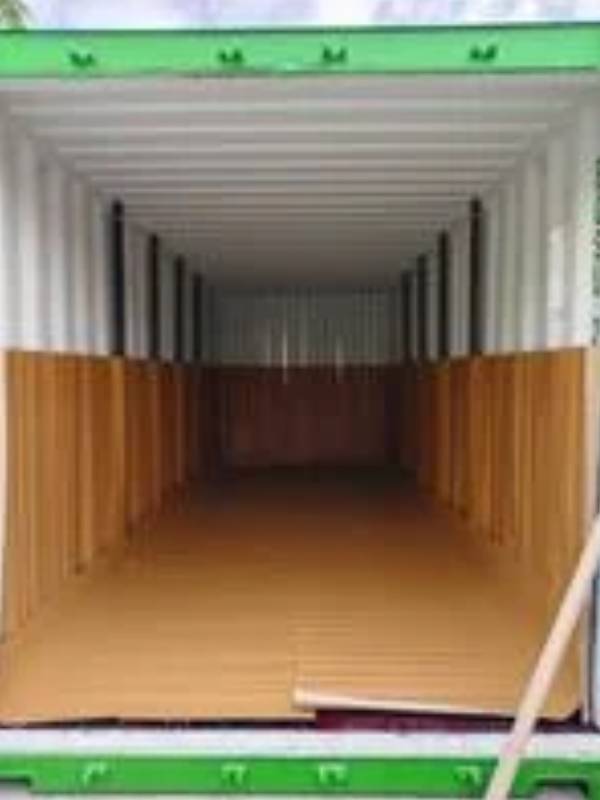

Installation service
After-sales service

Our Model

Flexitank

Standard

We realise the independent production of the whole industry. Every process condenses the focus on quality and takes the lead in implementing the MES process traceability system, which drives product process innovation with technology and escorts the safety of transporting.

Features

Our Specification

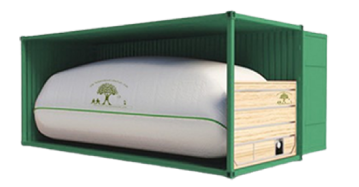

Standard Type

● Site: 14 - 20KL
● Specification: 3+1, 4+1, 3T+1
● Temperature: -25°C to 60°C
● Container: Trailer or van
● Liquid Type: No oxygen transmission rate required
● Transportation: Road, sea and rail way

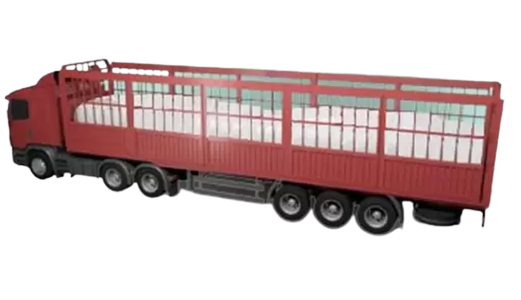

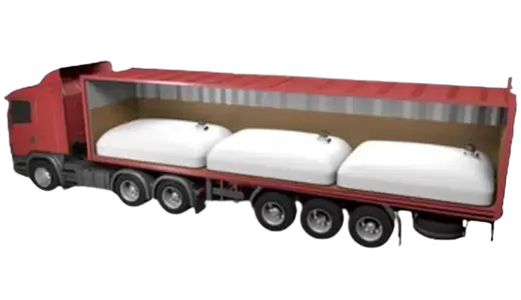

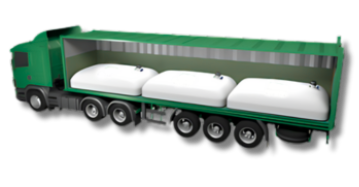

Automotive (Truck) Type

● Site: 14 - 20KL
● Specification: 3+1, 4+1
● Temperature: -25°C to 60°C
● Container: Trailer or van
● Liquid Type: Food and non-hazardous chemicals
● Transportation: Road only

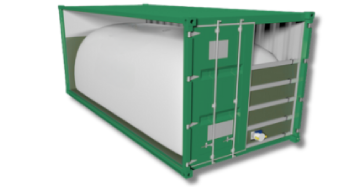

High Temperature Resistant (HTR) Type

● Site: 16 - 24KL
● Specification: 2 (Thickness) + 1
● Temperature: 90°C to 120°C
● Container: 20' Container
● Liquid Type: High temperature liquid that doesn’t solidify when loaded
● Transportation: Road, sea, and rail ways

High Temperature Resistant (HTR) Type

Flexitank in ISO Tank

● Site: 26KL
● Specification: 3+1, 4+1
● Temperature: -25°C to 60°C
● Container: ISO tank
● Liquid Type: Chemical liquid
● Transportation: Road, sea and rail way
